Not every spa can use a standard two-piece cover. When a spa measures more than 96 inches in either direction, the cover usually requires a different construction method to handle the larger size and panel spans.

Oversized spa covers are commonly used for swim spas, large built-in spas, fiberglass spas, and other installations that exceed standard cover dimensions. Because every large spa is different, the number of sections and the panel layout must be planned around the actual measurements of the spa.

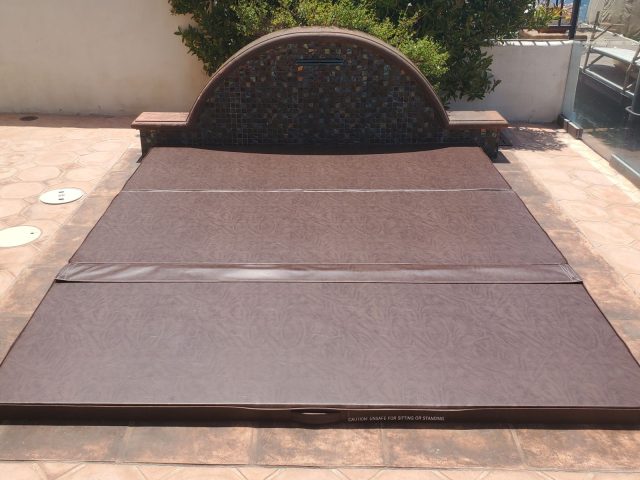

When Is a Spa Cover Considered Oversized?

For our covers, a spa cover is considered oversized when it measures more than 96 inches in either direction.

Once a cover exceeds that size, it cannot simply be built as a larger version of a standard two-piece hot tub cover. The foam panels, reinforcement, hinges, and overall section layout must be designed around the larger dimensions.

Common examples include:

• Swim spas
• Large built-in plaster or Gunite spas
• Oversized fiberglass spas
• Spas built into decks or patios
• Long rectangular spas
• Large custom-shaped installations

How Oversized Spa Covers Are Built

Oversized spa covers are built in multiple sections because standard foam panels cannot simply be extended indefinitely.

Our oversized covers use Heavy Duty 2.0 lb foam as the standard construction. The exact number of sections depends on the overall dimensions and shape of the spa.

Construction may include:

• Multiple reinforced cover sections
• Heavy Duty 2.0 lb foam
• Steel C-channel reinforcement
• A flat center section when required by the overall span
• Three-piece or four-piece construction for longer spas

Standard foam panels are generally built within approximately 4-foot by 8-foot sections. When a spa is especially long or wide, additional sections may be required so the cover can be properly supported and handled.

Why Panel Layout Matters

The number of sections is not chosen only for appearance. Large foam panels become difficult to handle and place greater stress on the cover structure.

Dividing a large cover into properly sized sections can make the cover easier to use while helping control long unsupported spans.

For example, some swim spas require a three-piece cover, while longer models may require four sections. Other oversized spas may use two large tapered sections with a narrow flat center section between them.

The correct layout depends on the actual length and width of the spa.

Oversized Covers for Swim Spas

Swim spas are one of the most common reasons customers need oversized spa covers. Their length makes standard two-piece construction impractical for many models.

A swim spa cover may be built in three or four sections depending on the overall dimensions. The goal is to create sections that provide proper coverage while remaining practical to open, close, and move.

Because swim spas vary considerably in size and design, the exact measurements should be confirmed before the cover goes into production.

Oversized Covers for Built-In and In-Ground Spas

Large built-in plaster, Gunite, and fiberglass spas may also require oversized cover construction.

Measuring an in-ground spa is different from measuring a portable hot tub. For a built-in spa, we normally start with the water opening and then determine how much additional coverage is needed so the cover can rest properly on the surrounding coping or deck surface.

The final cover size depends on the spa opening, surrounding surface, shape, and available resting area.

Irregular or free-form shapes may require a template rather than measurements alone.

Insulation and Foam Density

Oversized spa covers are built with Heavy Duty 2.0 lb foam. This provides greater strength for the larger spans required in oversized and swim spa covers.

The cover sections are tapered where appropriate to help shed rainwater and provide insulation. Some large designs may also require a flat center section as part of the overall panel layout.

Foam density is only one part of the cover. Proper reinforcement, vapor barrier protection, panel size, hinge placement, and overall construction also affect how the cover performs.

Important Safety Information for Oversized Covers

Spa covers over 96 inches are not ASTM F1346-91 child-safety rated. Their large dimensions and multi-panel construction place them outside the size range of our ASTM-qualified covers.

Locking tie-downs are available for oversized and swim spa covers and can help restrict access to the spa. However, they do not make an oversized cover ASTM-certified.

When access by children is a concern, the locking tie-downs should be secured whenever the spa is not in use. Additional barriers or safety measures may also be appropriate depending on the installation.

How Do You Measure an Oversized Spa?

The correct measuring method depends on the type of spa.

For a large portable or fiberglass spa, measurements are generally taken from the outside edges of the spa shell. The length, width, corner radius, cut corners, and other special features must be considered.

For a built-in plaster or Gunite spa, the water opening and surrounding coping or deck area need to be evaluated so the cover has a proper resting surface.

For unusual free-form shapes, a full-size template may be required.

Because oversized covers are custom-built and freight costs can vary significantly, these covers are quoted individually.

How Are Oversized Spa Covers Delivered?

Oversized and swim spa covers are generally too large for standard parcel delivery. For out-of-area customers, they are normally shipped by LTL freight carrier.

The carrier typically contacts the customer to arrange a delivery appointment. Freight cost depends on the size of the packaged cover and the delivery location.

For Southern California customers, local delivery options may be available depending on the location and time of year.

Frequently Asked Questions

What size spa needs an oversized cover?

For our covers, a spa measuring more than 96 inches in either direction is considered oversized and requires special construction.

Are oversized spa covers always three pieces?

No. The number of sections depends on the spa dimensions. Some covers may use three sections, while longer swim spas may require four. Other layouts may use a flat center section between larger tapered panels.

What foam is used in oversized spa covers?

Our oversized and swim spa covers are built with Heavy Duty 2.0 lb foam as the standard construction.

Can an oversized cover have locking tie-downs?

Yes. Locking tie-downs are available. However, covers over 96 inches are not ASTM F1346-91 child-safety rated.

Can you make a cover for an irregular oversized spa?

Yes. Depending on the shape, detailed measurements or a full-size template may be required.

How long does an oversized spa cover take to make?

Normal production time is approximately 3 to 4 weeks.

Need a Quote for an Oversized or Swim Spa Cover?

Oversized spa covers require careful planning because the overall dimensions determine the number of sections, foam layout, reinforcement, and shipping method.

Spa Covers Etc. has been helping customers with custom spa covers since 1997. We build covers for swim spas, oversized fiberglass spas, built-in plaster and Gunite spas, and unusual custom shapes.

For a quote, call Chris at (949) 496-2883. Have the overall dimensions and spa location available so we can determine the appropriate construction and delivery options.

We’ve got your spa covered!

An oversized spa cover is any cover larger than 96 inches in length or width.

Once a spa goes beyond standard cover dimensions, you need to plan the construction, panel layout, measuring process, and final fit more carefully.

At Spa Covers Etc., we build oversized spa covers with panels up to 120 inches wide. Length is much more flexible because we can add additional panels as needed.

As a result, we can build covers for very large spas, swim spas, built-in plaster spas, fiberglass spas, and unusual installations that cannot use a standard two-panel cover.

What Is Considered an Oversized Spa Cover?

For our covers, anything larger than 96 inches in either direction falls into the oversized category.

Examples include:

• A spa that is 108″ x 108″
• A swim spa that is 90″ x 192″
• A large built-in plaster spa
• A wide fiberglass spa
• An unusually shaped spa that requires multiple panels

We use Heavy Duty 2.0 lb foam for oversized covers because larger panels require additional strength.

Depending on the total size, we may build the cover in three pieces, four pieces, or with additional sections.

How Large Can an Oversized Spa Cover Be?

We can build oversized spa covers with panels up to 120 inches wide.

Length gives us more flexibility because we can add extra panels for very long spas and swim spas.

The final number of panels depends on:

• Overall length
• Overall width
• Shape of the spa
• Where the cover needs to fold
• How the cover will be handled
• How the spa is installed

In some cases, a three-piece layout works well. Larger spas may require four pieces or more.

We may also use a special center panel when the overall dimensions call for it.

Start With How the Spa Is Installed

Choosing the right oversized spa cover starts with understanding how the spa is installed.

For example, you do not measure a built-in plaster spa the same way you measure a raised fiberglass spa.

That difference becomes especially important with oversized covers because the cover must fit the installation as well as the spa itself.

Built-In Plaster Spas

For a built-in plaster or Gunite spa, the cover normally needs to rest securely on the surrounding coping.

Therefore, you should not make the cover only to the size of the water opening.

Instead, we look at the water span and determine how much extra coverage the cover needs so it can rest properly on the coping.

In many cases, this means adding approximately 3 to 4 inches per side, or 6 to 8 inches overall, beyond the water opening.

However, the exact amount depends on the coping, shape, surrounding deck, and where the cover can sit securely.

With oversized built-in spas, proper support on the coping matters just as much as the overall dimensions.

Raised Fiberglass Spas

A fiberglass spa may sit several inches above the deck.

In that situation, we can often build the cover to fit the spa shell itself and use a skirt to cover the exposed side of the spa.

The skirt hangs around the outside edge and gives the installation a cleaner finished appearance.

Because the cover fits the raised shell, it may not need to extend onto the deck at all.

Recessed Fiberglass Spas Require a Judgment Call

Recessed fiberglass spas can be more complicated.

When the spa shell sits close to deck level, more than one cover design may work.

For example:

• Build the cover to fit the fiberglass spa itself and use little or no skirt
• Make the cover larger so it rests on the surrounding deck
• Adjust the size around raised controls, trim, or uneven deck areas
• Use a combination of overlap and skirt depending on the installation

This is where experience matters.

Ultimately, the right choice depends on how the spa sits in the deck and where the cover will receive proper support.

Should the Cover Fit the Spa or Rest on the Deck?

There is no single answer for every oversized spa because each installation is different.

A built-in plaster spa usually needs a cover that rests on the coping.

By contrast, a raised fiberglass spa often works better with a cover that fits the shell and uses a skirt.

A recessed fiberglass spa may require more planning. In that case, we may need to decide whether the better solution is to:

• Fit the spa closely
• Make the cover larger
• Let the cover rest on the deck
• Use a skirt
• Avoid a skirt entirely

The goal is to create a cover that has proper support, fits the installation, and remains practical to handle.

Panel Layout Matters

Large covers need sections that make sense for the size and shape of the spa.

A poorly planned panel layout can make the cover difficult to move or create awkward folding points.

When we choose the layout, we consider:

• The total dimensions
• Which direction the cover should fold
• How the sections will be removed
• Where handles are needed
• Whether the cover will use a lifter
• Whether walls, railings, landscaping, or structures limit access

For that reason, the largest possible panel is not always the most practical choice.

Unusual Shapes and Templates

Oversized spas are often more complicated than simple rectangles.

Common shapes include:

• Rounded ends
• Oval sections
• Large radius
• Cut corners
• Angled sides
• Free-form shapes

We can build some shapes from measurements alone.

More complicated shapes, however, may require a full-size template.

A template becomes especially important when small differences in shape could affect where the cover rests or how the sections line up.

Heavy Duty Construction Is Standard Over 96 Inches

We build all of our oversized spa covers over 96 inches with Heavy Duty 2.0 lb foam.

Larger panels need stronger construction than a standard spa cover.

In addition, the total span and number of panels affect the final design.

For oversized covers, the complete construction matters, including:

• Foam density
• Panel size
• Reinforcement
• Hinge layout
• Vapor barrier
• Exterior material
• Proper fit

Locking Tie-Downs Are Available

We can add locking tie-downs to oversized and swim spa covers.

These tie-downs help secure the cover when the spa is not in use.

However, oversized covers over 96 inches do not carry an ASTM child-safety rating.

That distinction is important when choosing a cover for a spa used around children or pets.

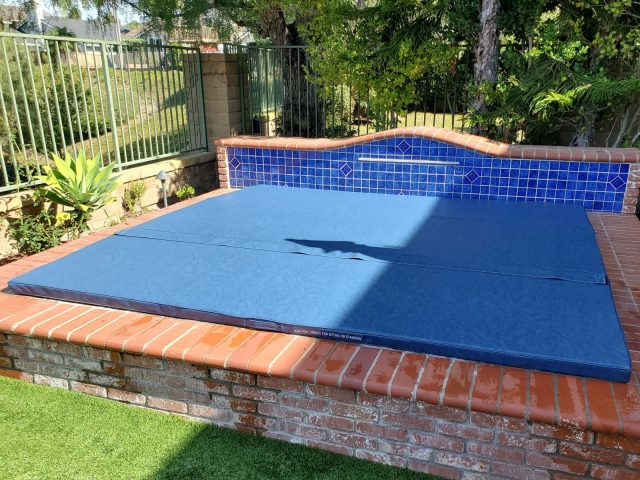

How to Choose the Right Oversized Spa Cover

Accurate dimensions are the starting point, but measurements are only part of the process.

You also need to consider:

• What type of spa it is
• Whether it is plaster or fiberglass
• Whether it is raised, recessed, or flush with the deck
• Where the cover will be supported
• Whether a skirt is needed
• How many panels are practical
• How the cover will be opened and removed

For large or unusual installations, the best solution is not always obvious from the dimensions alone.

Need Help Measuring an Oversized Spa?

Spa Covers Etc. has been helping customers with custom and oversized spa covers since 1997.

We can help determine the correct overall size, panel layout, and whether the cover should fit the spa itself or rest on the surrounding coping or deck.

For help with spa measurements or a custom quote, call Chris at (949) 496-2883.

We’ve got your spa covered!

Oversized hot tub covers require different construction than standard-size spa covers. Once a cover is larger than 96 inches in length or width, panel size, foam density, reinforcement, hinge placement, and overall layout become much more important.

An oversized spa cover is not simply a standard two-piece cover made larger. The cover must be designed around the actual dimensions and shape of the spa.

What Is an Oversized Hot Tub Cover?

For our covers, any spa cover larger than 96 inches in length or width is considered oversized.

Oversized covers are commonly built for:

• Large portable hot tubs
• Swim spas
• Built-in plaster or Gunite spas
• Large fiberglass spas
• Custom and unusual spa shapes

Because of the larger dimensions, oversized covers require Heavy Duty 2.0 lb foam and a panel layout designed for the size of the spa.

Heavy Duty 2.0 lb Foam Is Standard

All of our spa covers over 96 inches are built with Heavy Duty 2.0 lb foam.

The denser foam provides additional strength for the larger panels used in oversized construction.

Oversized covers use a 4-inch to 2-inch tapered foam design where applicable. Super Foam construction is available only for covers up to 96 inches.

Panel Layout Depends on the Overall Size

There is no single panel arrangement that works for every oversized spa.

Depending on the total length and width, an oversized cover may require:

• Three-piece construction
• Four-piece construction
• Additional panels for very long spas
• A special flat center section in some designs

The correct layout depends on the overall dimensions and how the cover will be opened, folded, and removed.

Using multiple panels allows us to build covers for very long spas and swim spas while keeping the individual sections more manageable.

Panels Up to 120 Inches Wide

We can build oversized covers using panels up to 120 inches wide.

Length is more flexible because additional panels can be added as needed.

This makes it possible to build covers for extremely long swim spas and other custom installations.

The final design is determined by the dimensions, shape, and practical handling of the finished cover.

Reinforcement Is Important on Large Covers

Larger panels place greater demands on the structure of the cover.

Proper oversized cover construction considers:

• Foam density
• Panel dimensions
• Structural reinforcement
• Hinge placement
• Vapor barrier protection
• Exterior material
• How each section will be handled

Our covers use steel C-channel reinforcement as part of the cover construction.

For an oversized cover, the entire design must work together. Foam density alone does not determine the performance of the finished cover.

The Vapor Barrier Protects the Foam Core

Each foam core is protected by a vapor barrier that helps protect the foam from moisture and chemical vapor coming from the spa.

Our covers use the VPB3000 vapor barrier system.

For spas with ozonators or aggressive water chemistry, double wrapping may be recommended.

Once moisture enters a foam core, the panel can become heavier and lose insulating performance, making vapor barrier protection an important part of the construction.

Oversized Covers for Built-In Plaster Spas

Large built-in plaster and Gunite spas often require oversized covers.

These installations are different from portable spas because the cover normally rests on the surrounding coping.

The cover must be large enough to extend beyond the water opening and sit securely on the coping.

Because built-in spas are often at deck level and more likely to be accidentally stepped on, Heavy Duty construction is especially important.

Oversized Covers for Fiberglass Spas

Large fiberglass spas can be installed in several different ways.

A raised fiberglass spa may use a cover fitted closely to the spa shell with a skirt around the outside.

A recessed fiberglass spa may require a different approach. Depending on the installation, the cover may fit the shell itself or be made larger to rest on the surrounding deck.

The installation determines how the finished cover should fit.

Handling a Large Multi-Piece Cover

Handling is an important part of oversized cover design.

A very large cover may provide good protection but still be impractical if the sections are too large or awkward to move.

When planning the panel layout, we consider:

• The direction the cover should fold
• The size of each section
• How the sections will be removed
• Available space around the spa
• Nearby walls, railings, or landscaping
• Whether a cover lifting system will be used

The best panel arrangement balances coverage, strength, and practical day-to-day use.

Locking Tie-Downs and ASTM Safety Standards

Oversized hot tub and swim spa covers can be built with locking tie-downs.

However, covers over 96 inches are not ASTM child-safety rated.

Qualifying covers up to 96 inches can meet ASTM F1346-91 requirements when properly constructed and equipped with the required locking tie-downs.

This distinction is important when comparing standard and oversized spa covers.

Oversized Covers for Unusual Shapes

Oversized spas are not always rectangular.

We can build covers for many shapes, including:

• Rounded ends
• Oval ends
• Large corner radiuses
• Cut corners
• Angled sides
• Free-form designs

Some shapes can be built from measurements. More complicated designs may require a full-size template.

Oversized Covers Require the Right Construction

An oversized hot tub cover is more than a larger version of a standard cover.

The foam density, reinforcement, panel layout, hinges, vapor barrier, and fit all need to work together.

Learn more about available options on our Oversized Spa Covers page.

Need Help With an Oversized Spa Cover?

Spa Covers Etc. has been building custom spa covers since 1997.

For help with dimensions, panel layout, unusual shapes, or a custom quote, call Chris at (949) 496-2883.

We’ve got your spa covered!
